xyflow是用于构建交互式图表的可定制React组件

npm install @xyflow/react

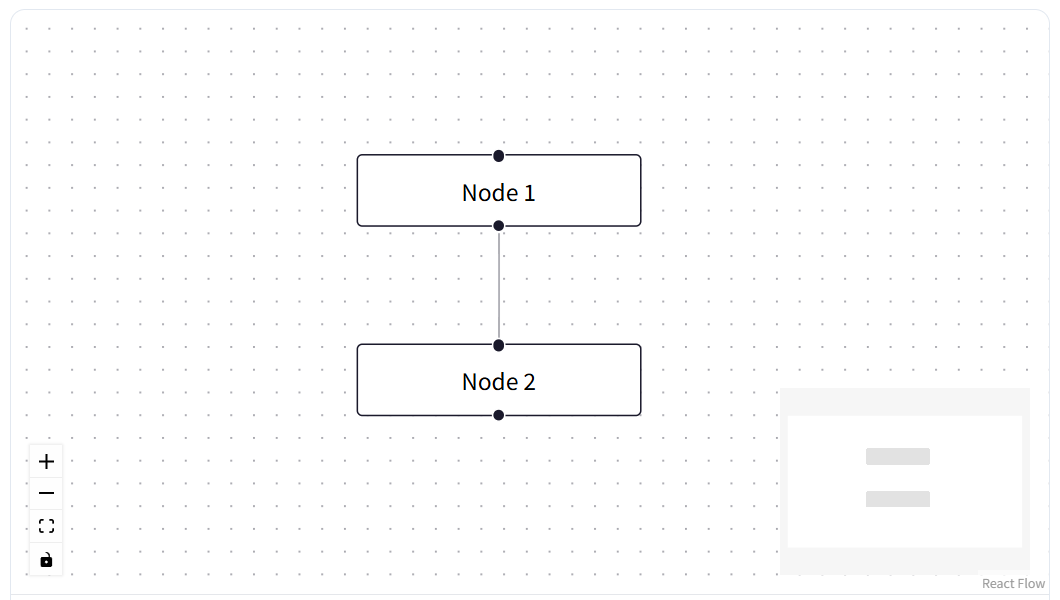

import { useCallback } from 'react';
import {
ReactFlow,
MiniMap,
Controls,
Background,
useNodesState,
useEdgesState,
addEdge,
} from '@xyflow/react';

import '@xyflow/react/dist/style.css';

const initialNodes = [
{ id: '1', position: { x: 0, y: 0 }, data: { label: '1' } },
{ id: '2', position: { x: 0, y: 100 }, data: { label: '2' } },
];

const initialEdges = [{ id: 'e1-2', source: '1', target: '2' }];

function Flow() {
const [nodes, setNodes, onNodesChange] = useNodesState(initialNodes);
const [edges, setEdges, onEdgesChange] = useEdgesState(initialEdges);

const onConnect = useCallback((params) => setEdges((eds) => addEdge(params, eds)), [setEdges]);

return (
  <ReactFlow
    nodes={nodes}
    edges={edges}
    onNodesChange={onNodesChange}
    onEdgesChange={onEdgesChange}
    onConnect={onConnect}
  >
    <MiniMap />
    <Controls />
    <Background />
  </ReactFlow>
);
}

export default Flow;
